11、TCP通信框架：客户端设计

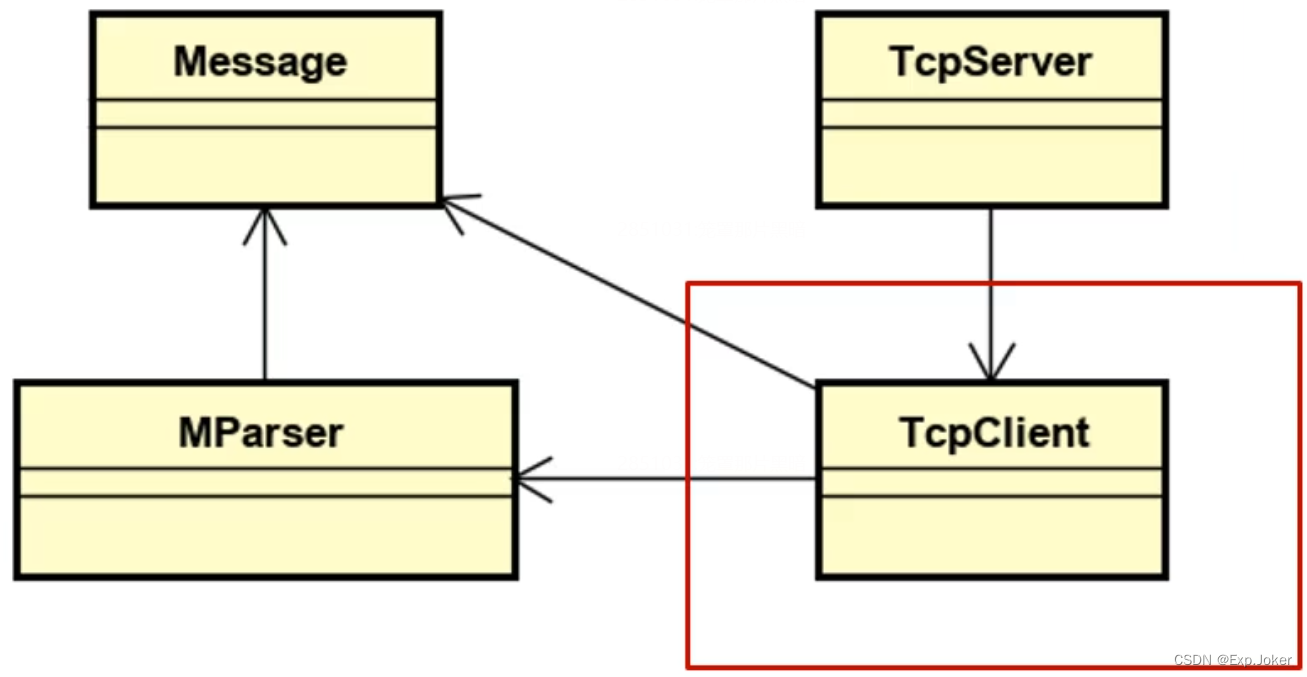

① TCP通信框架设计：封装、复用

  • 客户端

    • 以协议消息为基本单位收发数据
    • 同时支持字节为基本单位收发数据

  • 服务端

    • 负责监听连接，并产生通信客户端（服务器产生的）
    • 负责监听数据通信状态，并给出通知

② 职责定义（功能定义）

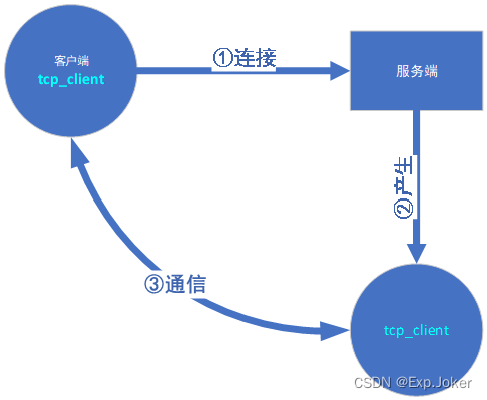

  • 客户端用于进行实际的双向数据通信

    • 数据发送&数据接收(协议消息、字节)

  • 服务端仅用于监听和回调通知

    • 事件类型：连接，数据，断开
    • 事件回调： void (*Listener)(TcpClient*client, int event);

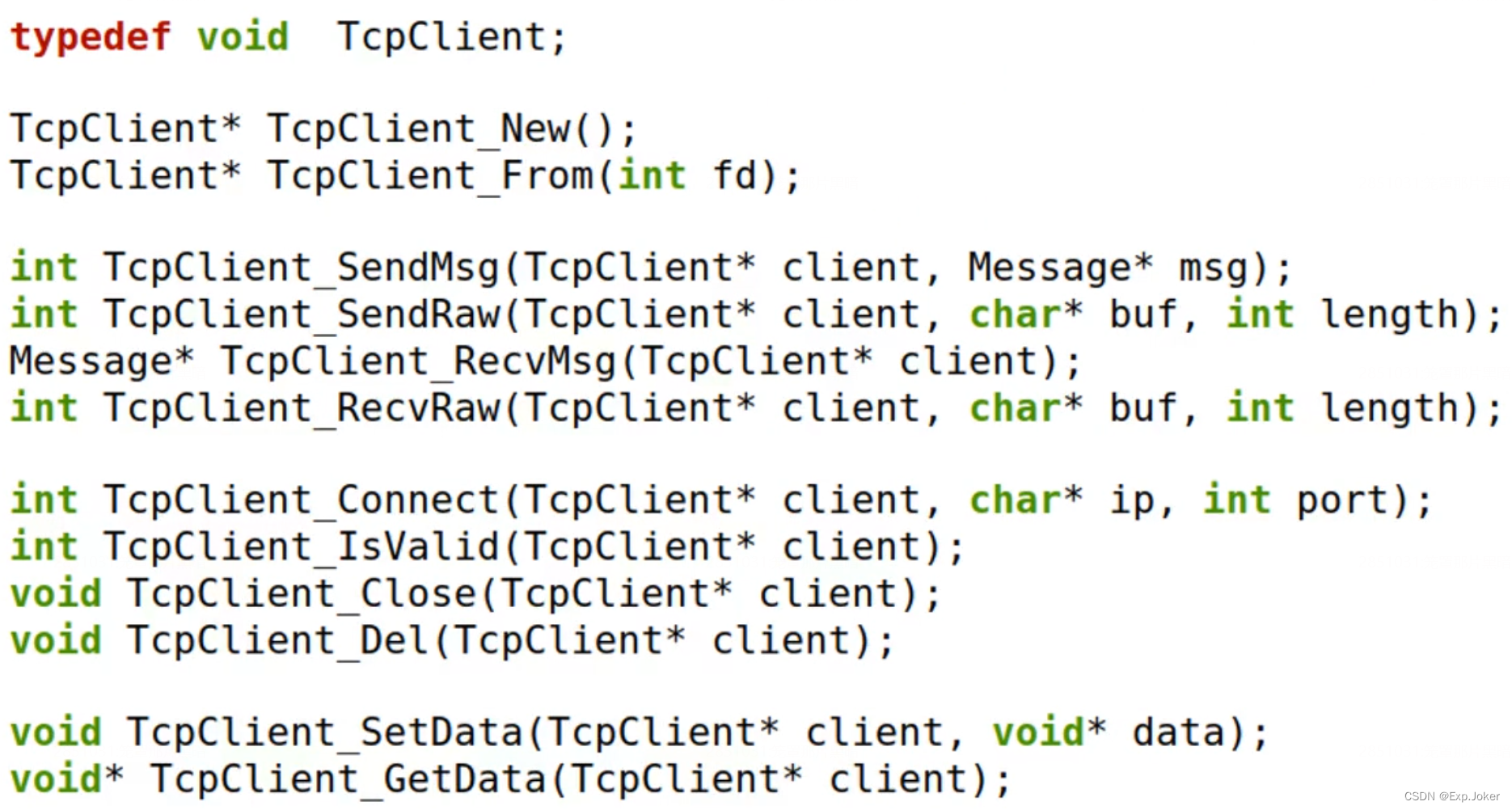

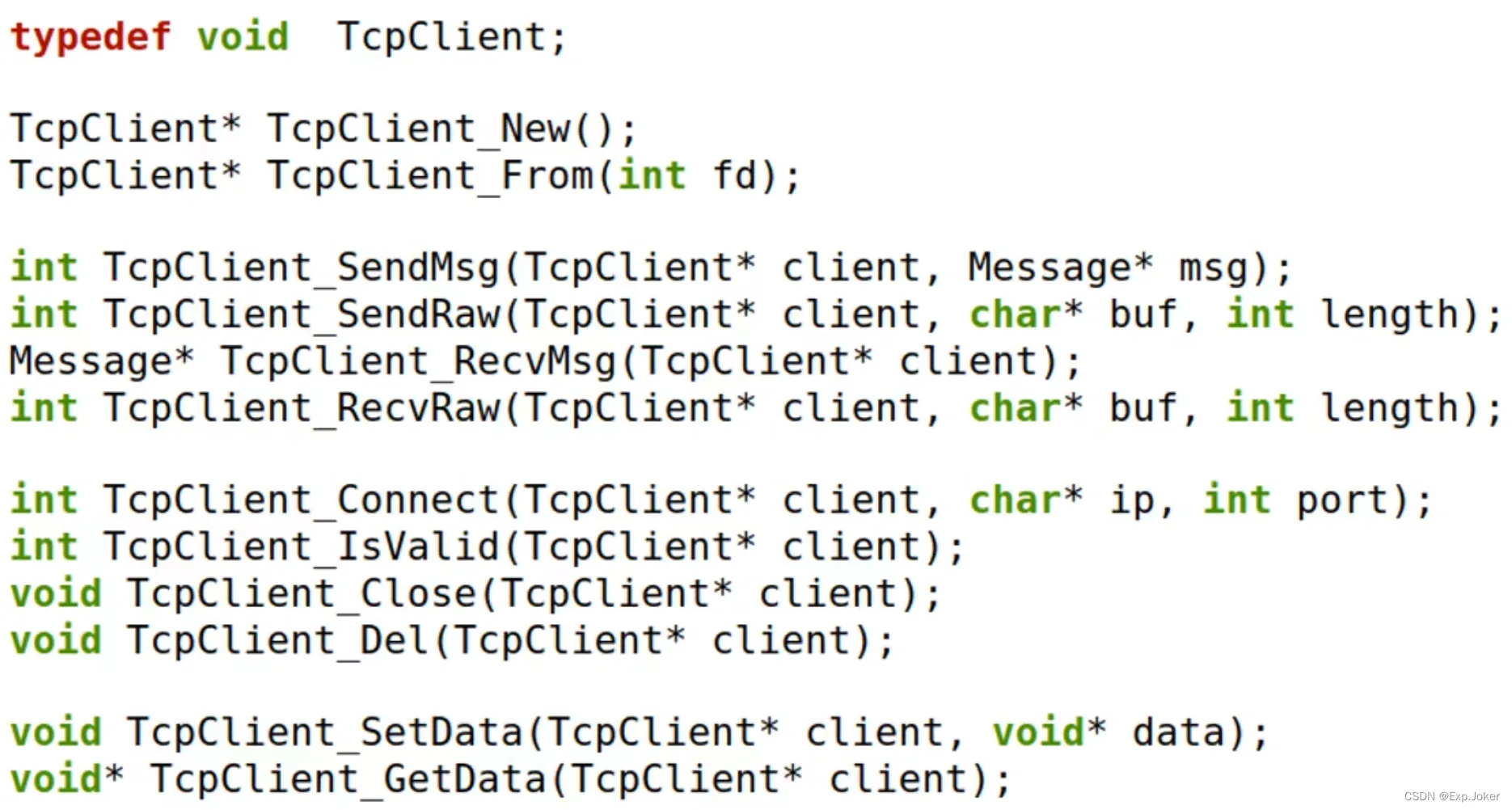

③ 客户端接口设计

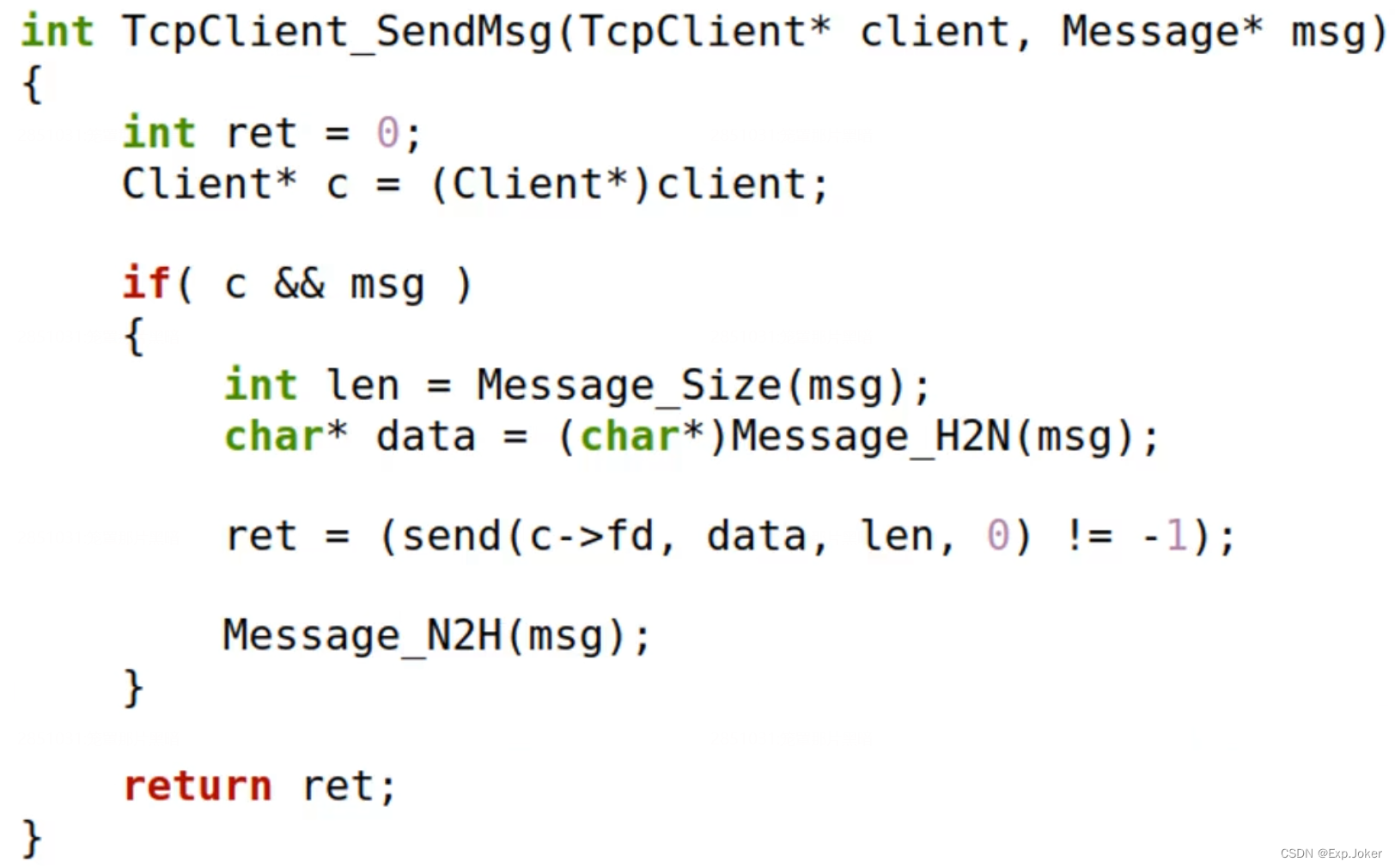

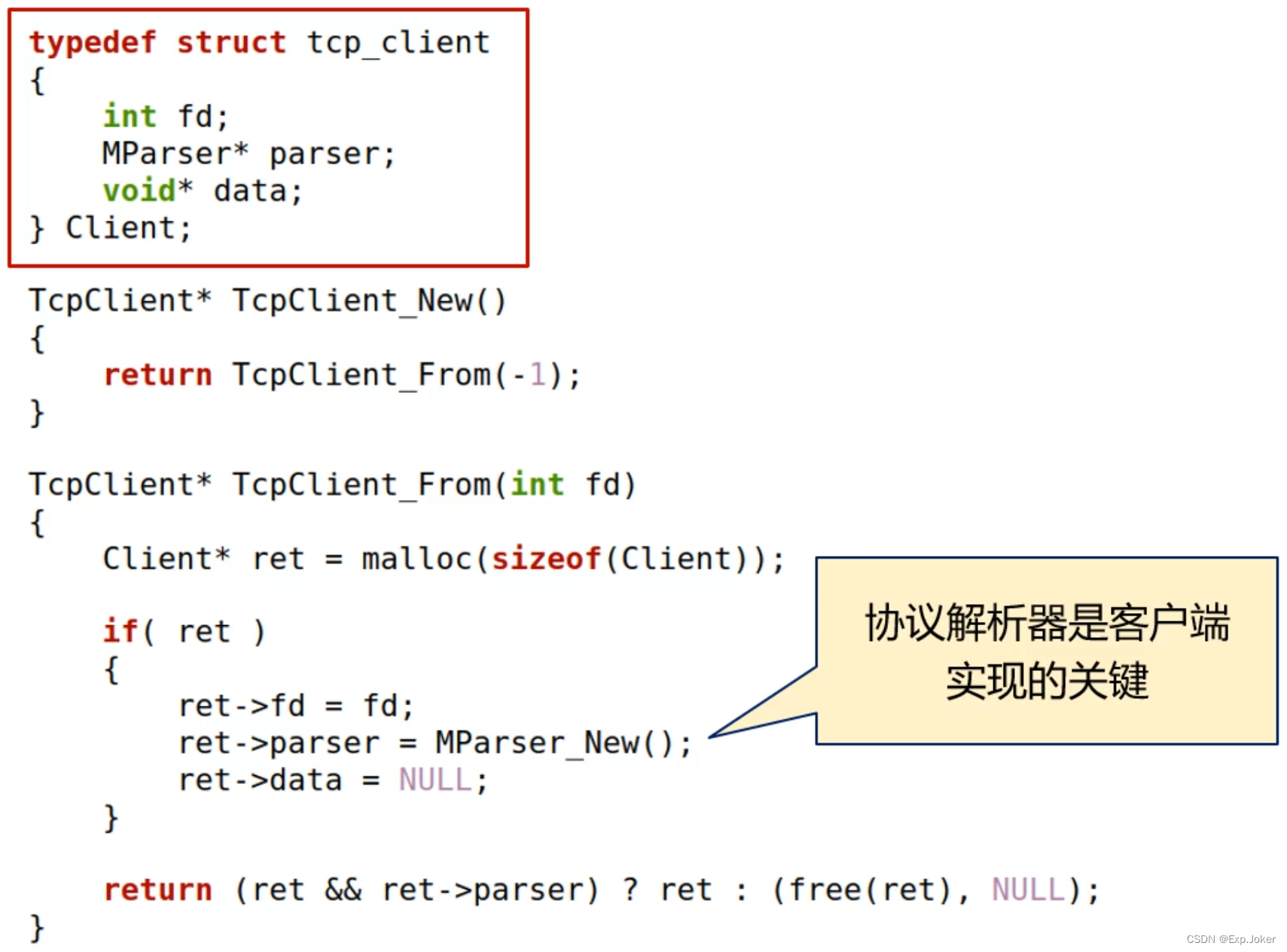

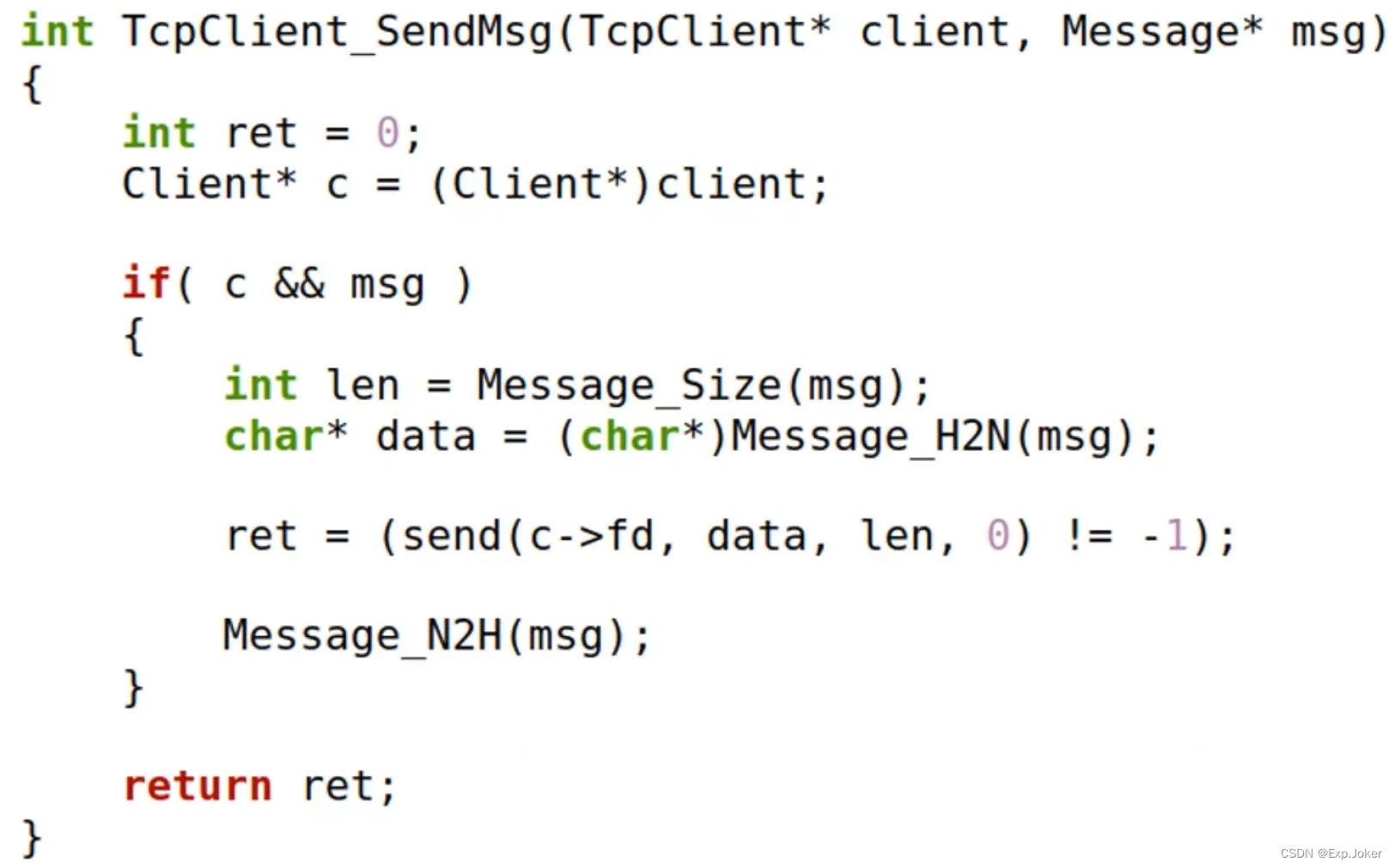

④ 客户端关键代码实现

⑤ 编程实验：客户端设计与实现

代码与下一节合并

12、TCP通信框架：服务端设计

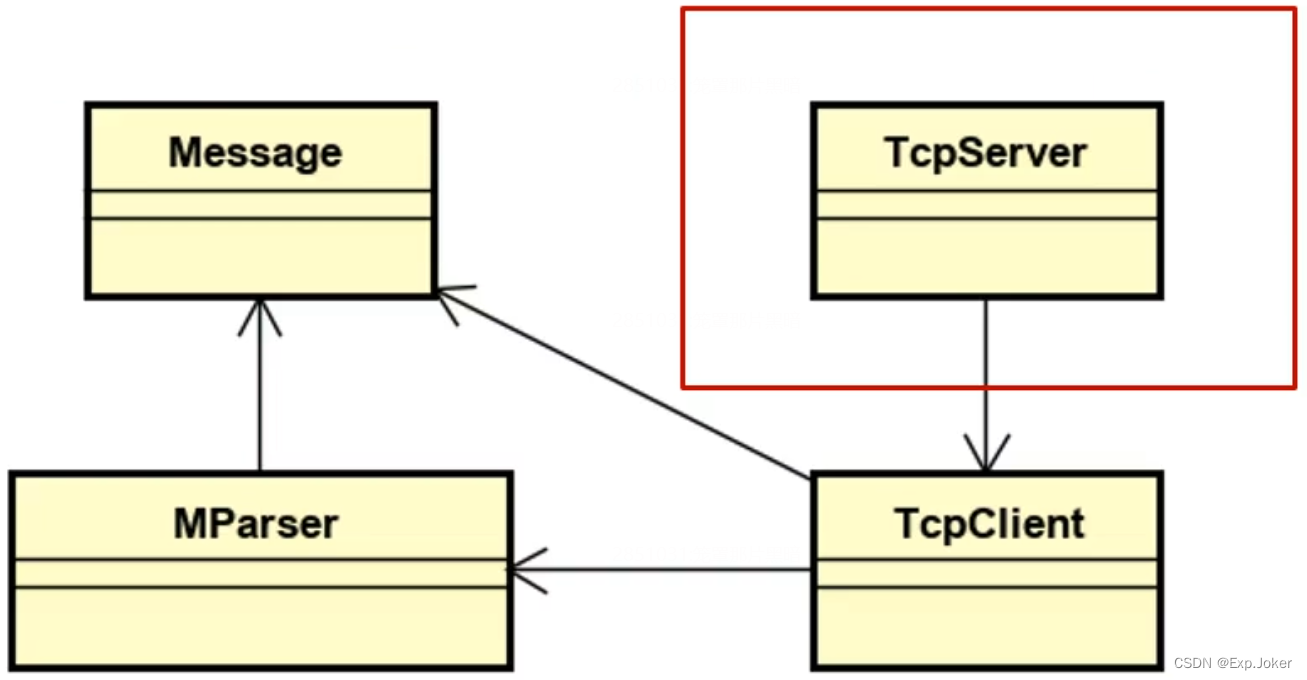

① TCP通信框架设计

  • 服务端

    • 负责监听连接状态

      • Connect：产生通信客户端(TcpClient)，并给出事件通知
      • Close：给出事件通知，并销毁通信客户端

    • 负责监听数据通信状态，并给出事件通知

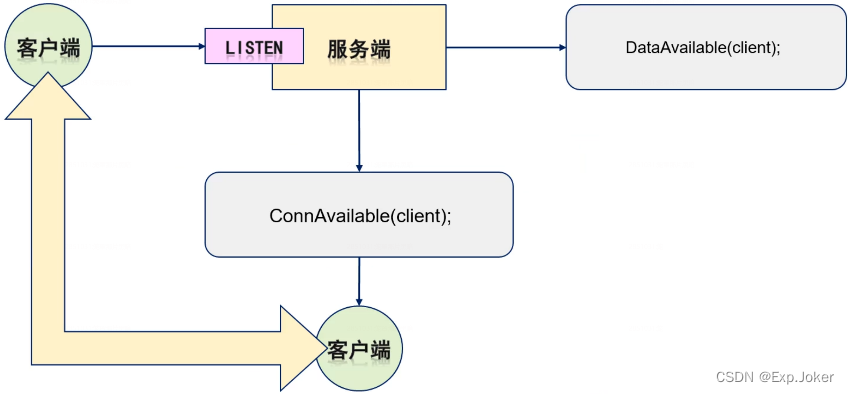

  • 服务端事件设计

    • EVT_CONN

      • 客户端连接服务端时触发，并创建TcpClient用于通信

    • EVT_DATA

      • 客户端数据到达服务端时触发，使用TcpClient读取数据

    • EVT_CLOSE

      • 客户端断开服务端时触发，相关TcpClient将被销毁

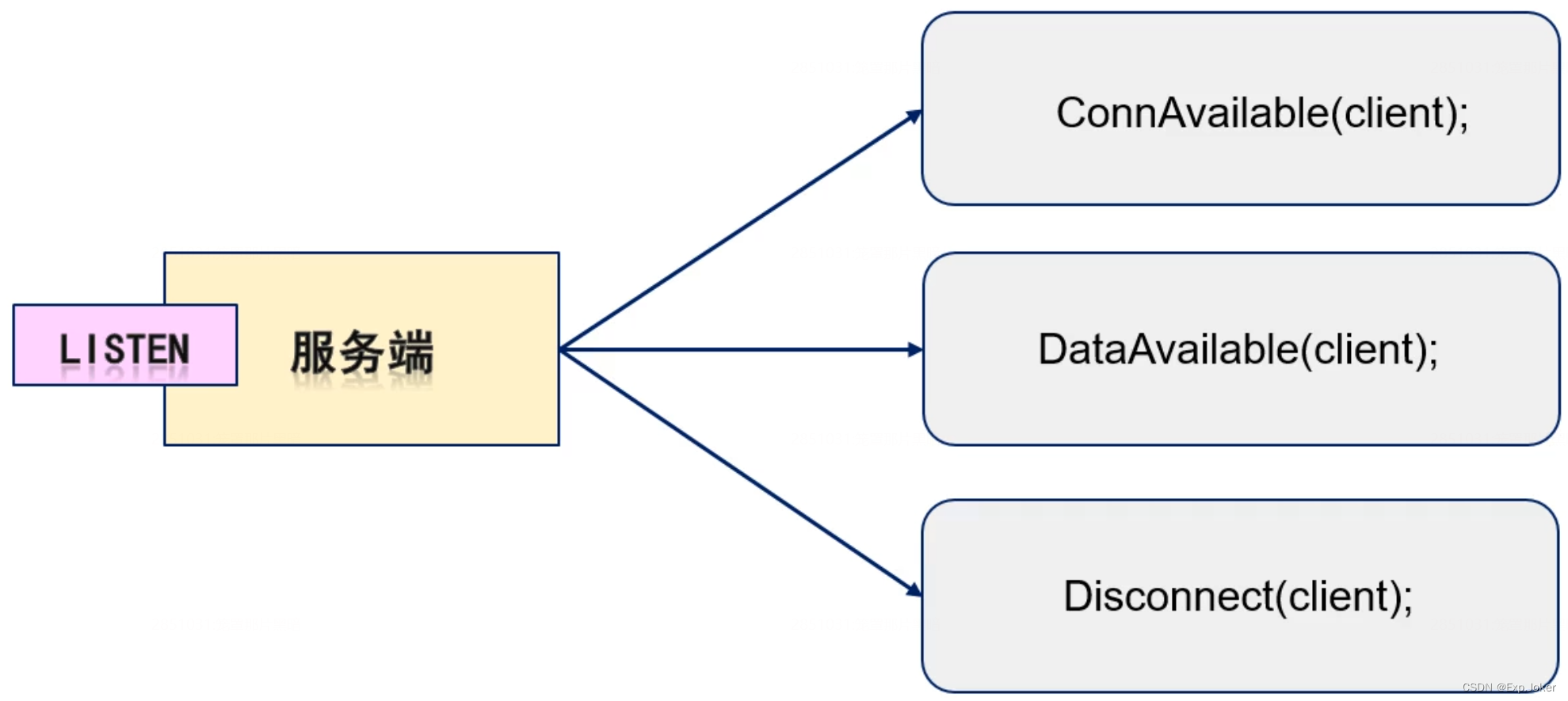

问题：服务端如何知道什么时候进行事件回调通知？

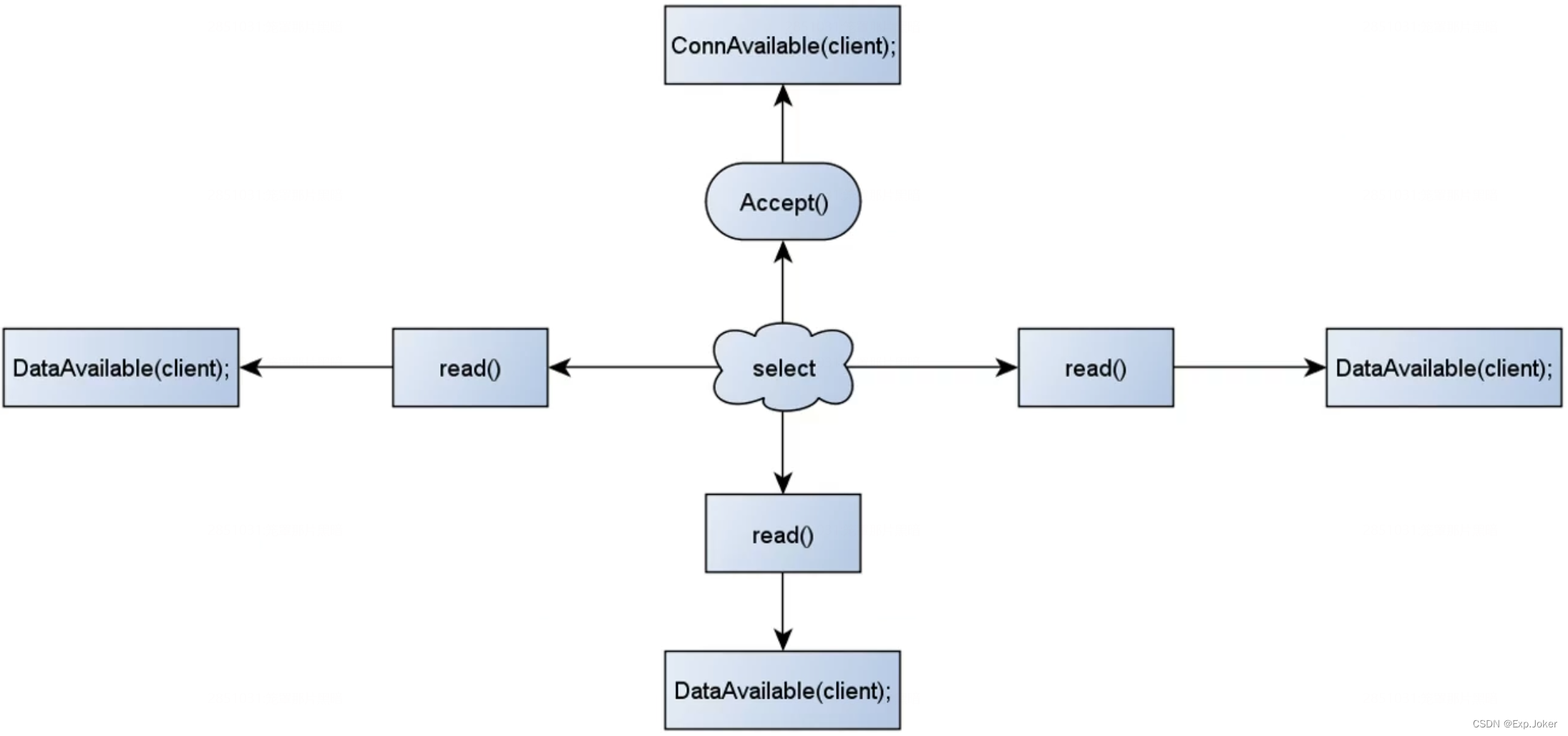

  • 服务端通过select机制循环触发事件回调！

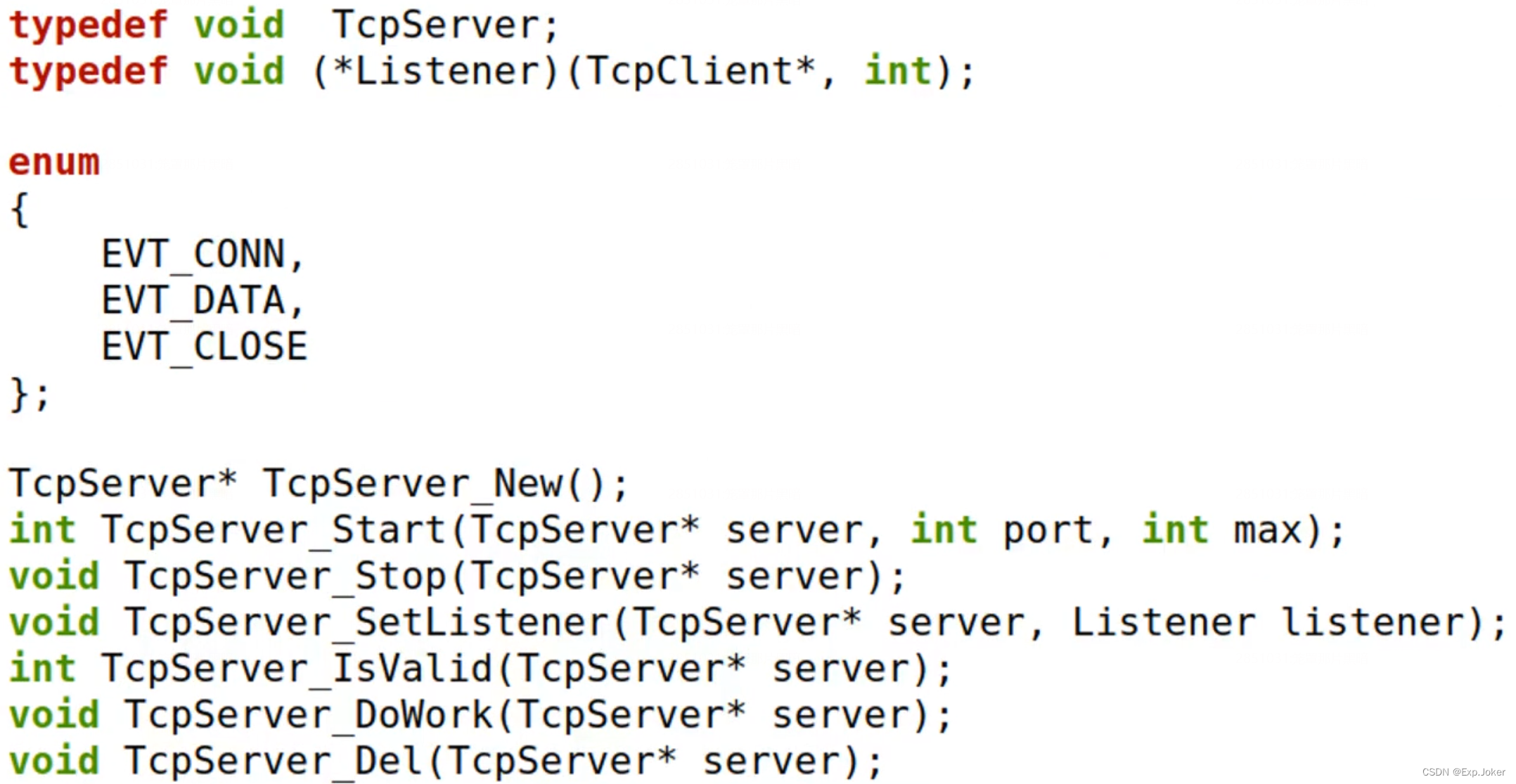

② 服务端接口设计

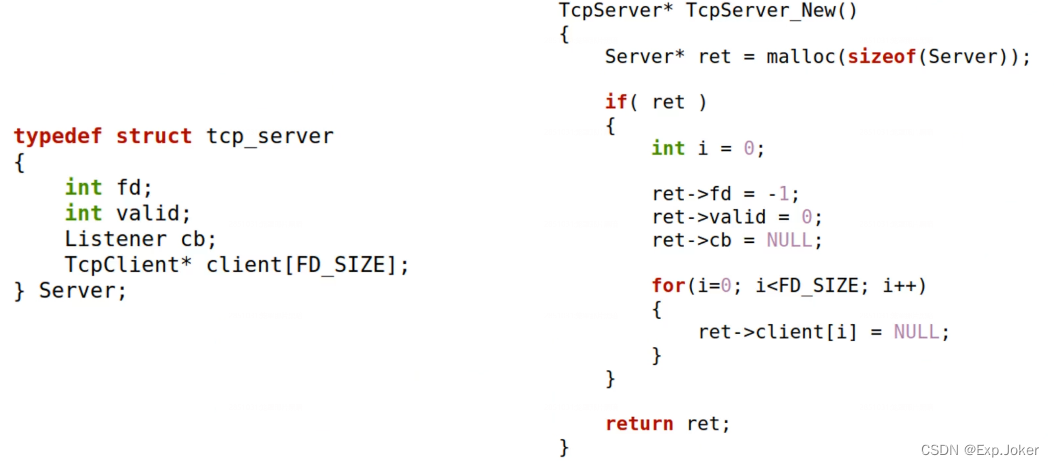

③ 服务端关键代码实现-初始化

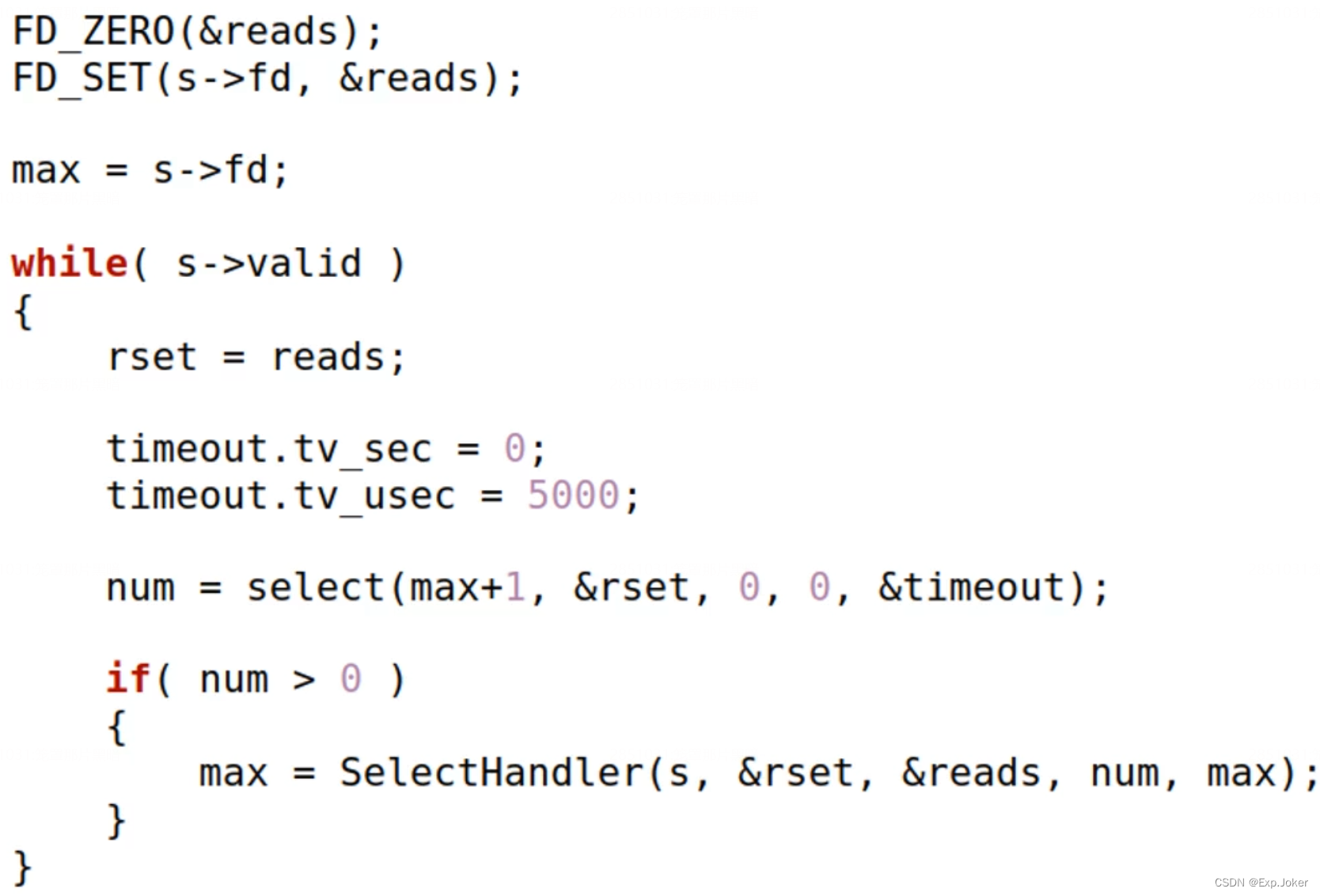

④ 服务端关键代码实现-事件监听

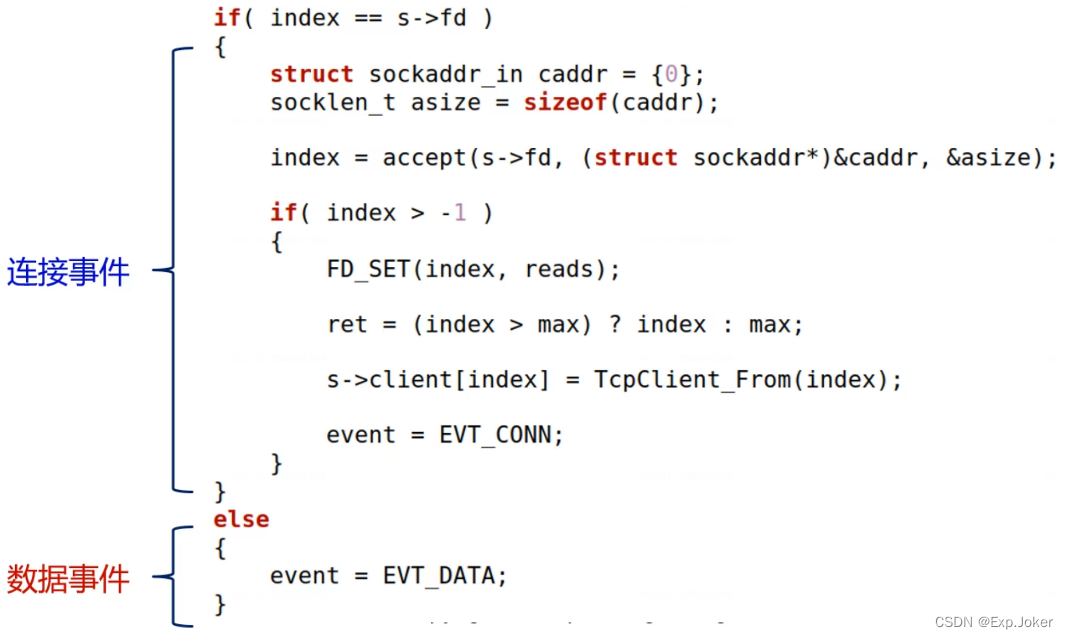

⑤ 服务端关键代码实现-连接事件&数据事件

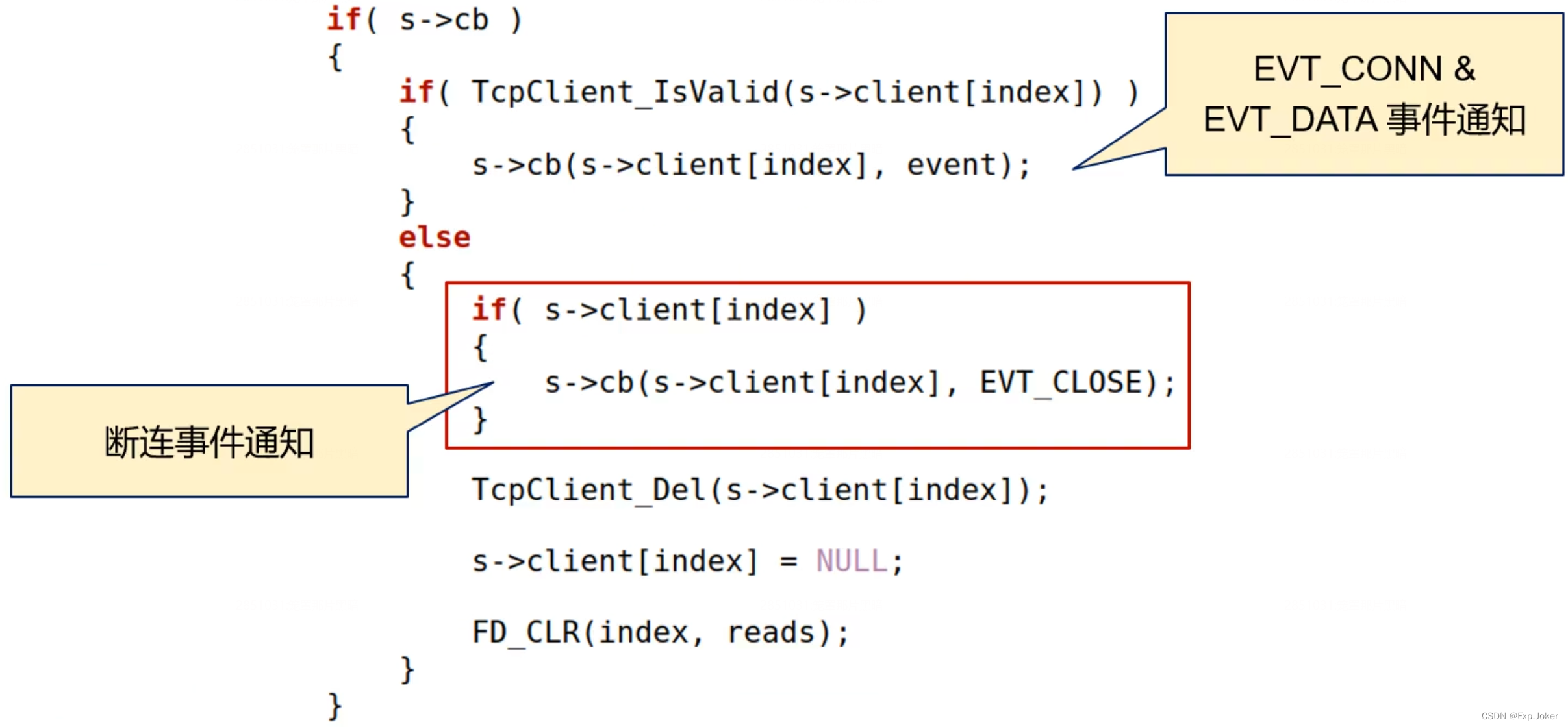

⑥ 服务端关键代码实现-断连事件&事件通知

⑦ 编程实验：服务端设计与实现

client.c

#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <stdio.h>
#include <unistd.h>
#include <string.h>
#include <malloc.h>
#include "message.h"
#include "tcp_client.h"

int main()
{
    int i = 0;
    char* test = "D.T.Software";
    Message* pm = NULL;
    TcpClient* client = TcpClient_New();

    if( client && TcpClient_Connect(client, "127.0.0.1", 8888) )
    {
        printf("connect success\n");

        for(i=0; i<strlen(test); i++)
        {
            char buf[2] = {0};

            buf[0] = test[i];

            pm = Message_New(128, 129, i, strlen(test), buf, 2);

            TcpClient_SendMsg(client, pm);

            free(pm);
        }
    }

    getchar();

    TcpClient_Del(client);

    return 0;
}

server.c

#include <stdio.h>
#include <unistd.h>
#include <malloc.h>
#include <string.h>
#include "tcp_server.h"

void EventListener(TcpClient* client, int evt)
{
    if( evt == EVT_CONN )
    {
        printf("Connect: %p\n", client);
    }
    else if( evt == EVT_DATA )
    {
        Message* m = TcpClient_RecvMsg(client);

        if( m )
        {
            char* s = TcpClient_GetData(client);

            if( m->index == 0 )
            {
                s = malloc(m->total + 1);

                TcpClient_SetData(client, s);
            }

            strcpy(s+m->index, m->payload);

            if( (m->index + 1) == m->total )
            {
                printf("Data: %s\n", s);

                free(s);
            }

            free(m);
        }
    }
    else if( evt == EVT_CLOSE )
    {
        printf("Close: %p\n", client);
    }
}

int main()
{
    TcpServer* server = TcpServer_New();

    if( server )
    {
        int r = TcpServer_Start(server, 8888, 20);

        printf("r = %d\n", r);

        if( r )
        {
            TcpServer_SetListener(server, EventListener);
            TcpServer_DoWork(server);
        }
    }

    return 0;
}

message.c

#include "message.h"
#include <malloc.h>
#include <string.h>
#include <arpa/inet.h>

Message* Message_New(unsigned short type, unsigned short cmd, unsigned short index, unsigned short total, const char* payload, unsigned int length)
{
    Message* ret = malloc(sizeof(Message) + length);

    if( ret  )
    {
        ret->type = type;
        ret->cmd = cmd;
        ret->index = index;
        ret->total = total;
        ret->length = length;

        if( payload )
        {
            memcpy(ret + 1, payload, length);
        }
    }

    return ret;
}

int Message_Size(Message* m)
{
    int ret = 0;

    if( m )
    {
        ret = sizeof(Message) + m->length;
    }

    return ret;
}

Message* Message_N2H(Message* m)
{
    if( m )
    {
        m->type = ntohs(m->type);
        m->cmd = ntohs(m->cmd);
        m->index = ntohs(m->index);
        m->total = ntohs(m->total);
        m->length = ntohl(m->length);
    }

    return m;
}

Message* Message_H2N(Message* m)
{
    if( m )
    {
        m->type = htons(m->type);
        m->cmd = htons(m->cmd);
        m->index = htons(m->index);
        m->total = htons(m->total);
        m->length = htonl(m->length);
    }

    return m;
}

message.h

#ifndef MESSAGE_H
#define MESSAGE_H

typedef struct message
{
    unsigned short type;
    unsigned short cmd;
    unsigned short index;
    unsigned short total;
    unsigned int length;
    unsigned char payload[];
} Message;

Message* Message_New(unsigned short type, unsigned short cmd, unsigned short index, unsigned short total, const char* payload, unsigned int length);
int Message_Size(Message* m);
Message* Message_N2H(Message* m);
Message* Message_H2N(Message* m);
#endif

msg_parser.c

#include <malloc.h>
#include <string.h>
#include <arpa/inet.h>
#include <unistd.h>

#include "msg_parser.h"

typedef struct msg_parser
{
    Message cache;   // 缓存已解析的消息头
    int header;      // 标识消息头是否解析成功
    int need;        // 标识还需要多少字节才能完成解析
    Message* msg;    // 解析中的协议消息（半成品）
} MsgParser;

static void InitState(MsgParser* p)
{
    p->header = 0;
    p->need = sizeof(p->cache);

    free(p->msg);

    p->msg = NULL;
}

static int ToMidState(MsgParser* p)
{
    p->header = 1;
    p->need = p->cache.length;

    p->msg = malloc(sizeof(p->cache) + p->need);

    if( p->msg )
    {
        *p->msg = p->cache;
    }

    return !!p->msg;
}

static Message* ToLastState(MsgParser* p)
{
    Message* ret = NULL;

    if( p->header && !p->need )
    {
        ret = p->msg;

        p->msg = NULL;
    }

    return ret;
}

static int ToRecv(int fd, char* buf, int size)
{
    int retry = 0;
    int i = 0;

    while( i < size )
    {
        int len = read(fd, buf + i, size - i);

        if( len > 0 )
        {
            i += len;
        }
        else if( len < 0 )
        {
            break;
        }
        else
        {
            if( retry++ > 5 )
            {
                break;
            }

            usleep(200 * 1000);
        }
    }

    return i;
}

MParser* MParser_New()
{
    MParser* ret = calloc(1, sizeof(MsgParser));

    if( ret )
    {
        InitState(ret);
    }

    return ret;
}

Message* MParser_ReadMem(MParser* parser, unsigned char* mem, unsigned int length)
{
    Message* ret = NULL;
    MsgParser* p = (MsgParser*)parser;

    if( p && mem && length )
    {
        if( !p->header )
        {
            int len = (p->need < length) ? p->need : length;
            int offset = sizeof(p->cache) - p->need;

            memcpy((char*)&p->cache + offset, mem, len);

            if( p->need == len )
            {
                Message_N2H(&p->cache);

                mem += p->need;
                length -= p->need;

                if( ToMidState(p) )
                {
                    ret = MParser_ReadMem(p, mem, length);
                }
                else
                {
                    InitState(p);
                }
            }
            else
            {
                p->need -= len;
            }
        }
        else
        {
            if( p->msg )
            {
                int len = (p->need < length) ? p->need : length;
                int offset = p->msg->length - p->need;

                memcpy(p->msg->payload + offset, mem, len);

                p->need -= len;
            }

            if( ret = ToLastState(p) )
            {
                InitState(p);
            }
        }
    }

    return ret;
}

Message* MParser_ReadFd(MParser* parser, int fd)
{
    Message* ret = NULL;
    MsgParser* p = (MsgParser*)parser;

    if( (fd != -1) && p )
    {
        if( !p->header )
        {
            int offset = sizeof(p->cache) - p->need;
            int len = ToRecv(fd, (char*)&p->cache + offset, p->need);

            if( len == p->need )
            {
                Message_N2H(&p->cache);

                if( ToMidState(p) )
                {
                    ret = MParser_ReadFd(p, fd);
                }
                else
                {
                    InitState(p);
                }
            }
            else
            {
                p->need -= len;
            }
        }
        else
        {
            if( p->msg )
            {
                int offset = p->msg->length - p->need;
                int len = ToRecv(fd, p->msg->payload + offset, p->need);

                p->need -= len;
            }

            if( ret = ToLastState(p) )
            {
                InitState(p);
            }
        }
    }

    return ret;
}

void MParser_Reset(MParser* parser)
{
    MsgParser* p = (MsgParser*)parser;

    if( p )
    {
        InitState(p);
    }
}

void MParser_Del(MParser* parser)
{
    MsgParser* p = (MsgParser*)parser;

    if( p )
    {
        free(p->msg);
        free(p);
    }
}

msg_parser.h

#ifndef MSG_PARSER_H
#define MSG_PARSER_H

#include "message.h"

typedef void  MParser;

MParser* MParser_New();
Message* MParser_ReadMem(MParser* parser, unsigned char* mem, unsigned int length);
Message* MParser_ReadFd(MParser* parser, int fd);
void MParser_Reset(MParser* parser);
void MParser_Del(MParser* parser);

#endif

tcp_client.c

#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <netinet/tcp.h>
#include <arpa/inet.h>
#include <unistd.h>
#include <malloc.h>
#include "tcp_client.h"
#include "msg_parser.h"

typedef struct tcp_client
{
    int fd;
    MParser* parser;
    void* data;
} Client;

TcpClient* TcpClient_New()
{
    return TcpClient_From(-1);
}

TcpClient* TcpClient_From(int fd)
{
    Client* ret = malloc(sizeof(Client));

    if( ret )
    {
        ret->fd = fd;
        ret->parser = MParser_New();
        ret->data = NULL;
    }

    return (ret && ret->parser) ? ret : (free(ret), NULL);
}

int TcpClient_SendMsg(TcpClient* client, Message* msg)
{
    int ret = 0;
    Client* c = (Client*)client;

    if( c && msg )
    {
        int len = Message_Size(msg);
        char* data = (char*)Message_H2N(msg);

        ret = (send(c->fd, data, len, 0) != -1);

        Message_N2H(msg);
    }

    return ret;
}

int TcpClient_SendRaw(TcpClient* client, char* buf, int length)
{
    int ret = 0;
    Client* c = (Client*)client;

    if( c && buf )
    {
        ret = send(c->fd, buf, length, 0);
    }

    return ret;
}

Message* TcpClient_RecvMsg(TcpClient* client)
{
    Message* ret = NULL;
    Client* c = (Client*)client;

    if( c  )
    {
        ret = MParser_ReadFd(c->parser, c->fd);
    }

    return ret;
}

int TcpClient_RecvRaw(TcpClient* client, char* buf, int length)
{
    int ret = 0;
    Client* c = (Client*)client;

    if( c && buf )
    {
        ret = recv(c->fd, buf, length, 0);
    }

    return ret;
}

int TcpClient_Connect(TcpClient* client, char* ip, int port)
{
    int ret = TcpClient_IsValid(client);
    Client* c = (Client*)client;

    if( !ret && ip && c && ((c->fd = socket(PF_INET, SOCK_STREAM, 0)) != -1) )
    {
        struct sockaddr_in addr = {0};

        addr.sin_family = AF_INET;
        addr.sin_addr.s_addr = inet_addr(ip);
        addr.sin_port = htons(port);

        ret = (connect(c->fd, (struct sockaddr*)&addr, sizeof(addr)) != -1);
    }

    return ret;
}

int TcpClient_IsValid(TcpClient* client)
{
    int ret = 0;
    Client* c = (Client*)client;

    if( c )
    {
        struct tcp_info info = {0};
        int l = sizeof(info);

        getsockopt(c->fd, IPPROTO_TCP, TCP_INFO, &info, (socklen_t*)&l);

        ret = (info.tcpi_state == TCP_ESTABLISHED);
    }

    return ret;
}

void TcpClient_Close(TcpClient* client)
{
    Client* c = (Client*)client;

    if( c )
    {
        close(c->fd);

        c->fd = -1;

        MParser_Reset(c->parser);
    }
}

void TcpClient_Del(TcpClient* client)
{
    Client* c = (Client*)client;

    if( c )
    {
        TcpClient_Close(c);
        MParser_Del(c->parser);
        free(c);
    }
}

void TcpClient_SetData(TcpClient* client, void* data)
{
    Client* c = (Client*)client;

    if( c )
    {
        c->data = data;
    }
}

void* TcpClient_GetData(TcpClient* client)
{
    void* ret = NULL;
    Client* c = (Client*)client;

    if( c )
    {
        ret = c->data;
    }

    return ret;
}

tcp_client.h

#ifndef TCP_CLIENT_H
#define TCP_CLIENT_H

#include "message.h"

typedef void  TcpClient;

TcpClient* TcpClient_New();
TcpClient* TcpClient_From(int fd);

int TcpClient_SendMsg(TcpClient* client, Message* msg);
int TcpClient_SendRaw(TcpClient* client, char* buf, int length);
Message* TcpClient_RecvMsg(TcpClient* client);
int TcpClient_RecvRaw(TcpClient* client, char* buf, int length);

int TcpClient_Connect(TcpClient* client, char* ip, int port);
int TcpClient_IsValid(TcpClient* client);
void TcpClient_Close(TcpClient* client);
void TcpClient_Del(TcpClient* client);

void TcpClient_SetData(TcpClient* client, void* data);
void* TcpClient_GetData(TcpClient* client);

#endif

tcp_server.c

#include <sys/types.h>
#include <sys/socket.h>
#include <sys/select.h>
#include <netinet/in.h>
#include <netinet/tcp.h>
#include <arpa/inet.h>
#include <unistd.h>
#include <malloc.h>
#include "tcp_client.h"
#include "tcp_server.h"

#define FD_SIZE 1024

typedef struct tcp_server
{
    int fd;
    int valid;
    Listener cb;
    TcpClient* client[FD_SIZE];
} Server;

TcpServer* TcpServer_New()
{
    Server* ret = malloc(sizeof(Server));

    if( ret )
    {
        int i = 0;

        ret->fd = -1;
        ret->valid = 0;
        ret->cb = NULL;

        for(i=0; i<FD_SIZE; i++)
        {
            ret->client[i] = NULL;
        }
    }

    return ret;
}

int TcpServer_Start(TcpServer* server, int port, int max)
{
    Server* s = (Server*)server;

    if( s && !s->valid )
    {
        struct sockaddr_in saddr = {0};

        s->fd = socket(PF_INET, SOCK_STREAM, 0);

        s->valid = (s->fd != -1);

        saddr.sin_family = AF_INET;
        saddr.sin_addr.s_addr = htonl(INADDR_ANY);
        saddr.sin_port = htons(port);

        s->valid = s->valid && (bind(s->fd, (struct sockaddr*)&saddr, sizeof(saddr)) != -1 );
        s->valid = s->valid && (listen(s->fd, max) != -1);
    }

    return s->valid;
}

void TcpServer_Stop(TcpServer* server)
{
    Server* s = (Server*)server;

    if( s )
    {
        int i = 0;

        s->valid = 0;

        close(s->fd);

        for(i=0; i<FD_SIZE; i++)
        {
            TcpClient_Del(s->client[i]);
            s->client[i] = NULL;
        }
    }
}

void TcpServer_SetListener(TcpServer* server, Listener listener)
{
    Server* s = (Server*)server;

    if( s )
    {
        s->cb = listener;
    }
}

int TcpServer_IsValid(TcpServer* server)
{
    return server ? ((Server*)server)->valid : 0;
}

static int SelectHandler(Server* s, fd_set* rset, fd_set* reads, int num, int max)
{
    int ret = max;
    int i = 0;

    for(i=0; i<=max; i++)
    {
        if( FD_ISSET(i, rset) )
        {
            int index = i;
            int event = -1;

            if( index == s->fd )
            {
                struct sockaddr_in caddr = {0};
                socklen_t asize = sizeof(caddr);

                index = accept(s->fd, (struct sockaddr*)&caddr, &asize);

                if( index > -1 )
                {
                    FD_SET(index, reads);

                    ret = (index > max) ? index : max;

                    s->client[index] = TcpClient_From(index);

                    event = EVT_CONN;
                }
            }
            else
            {
                event = EVT_DATA;
            }

            if( s->cb )
            {
                if( TcpClient_IsValid(s->client[index]) )
                {
                    s->cb(s->client[index], event);
                }
                else
                {
                    if( s->client[index] )
                    {
                        s->cb(s->client[index], EVT_CLOSE);
                    }

                    TcpClient_Del(s->client[index]);

                    s->client[index] = NULL;

                    FD_CLR(index, reads);
                }
            }
        }
    }

    return ret;
}

void TcpServer_DoWork(TcpServer* server)
{
    Server* s = (Server*)server;

    if( s && s->valid )
    {
        int max = 0;
        int num = 0;
        fd_set reads = {0};
        fd_set rset = {0};
        struct timeval timeout = {0};

        FD_ZERO(&reads);
        FD_SET(s->fd, &reads);

        max = s->fd;

        while( s->valid )
        {
            rset = reads;

            timeout.tv_sec = 0;
            timeout.tv_usec = 10000;

            num = select(max+1, &rset, 0, 0, &timeout);

            if( num > 0 )
            {
                max = SelectHandler(s, &rset, &reads, num, max);
            }
        }
    }
}

void TcpServer_Del(TcpServer* server)
{
    TcpServer_Stop(server);
    free(server);
}

tcp_server.h

#ifndef TCP_SERVER_H
#define TCP_SERVER_H

#include "tcp_client.h"

typedef void  TcpServer;
typedef void (*Listener)(TcpClient*, int);

enum
{
    EVT_CONN,
    EVT_DATA,
    EVT_CLOSE
};

TcpServer* TcpServer_New();
int TcpServer_Start(TcpServer* server, int port, int max);
void TcpServer_Stop(TcpServer* server);
void TcpServer_SetListener(TcpServer* server, Listener listener);
int TcpServer_IsValid(TcpServer* server);
void TcpServer_DoWork(TcpServer* server);
void TcpServer_Del(TcpServer* server);

#endif

版权归属：sumjess

许可证：署名 4.0 国际 (CC-BY-4.0)
